SRT SKU: SRTCH6012 Barcode: 5051294199135

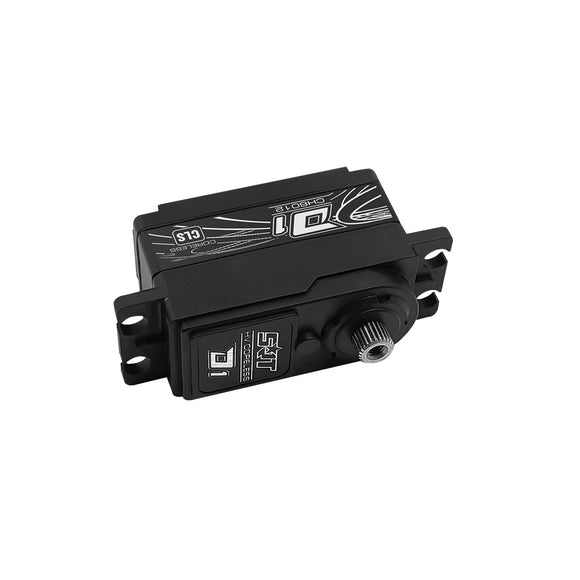

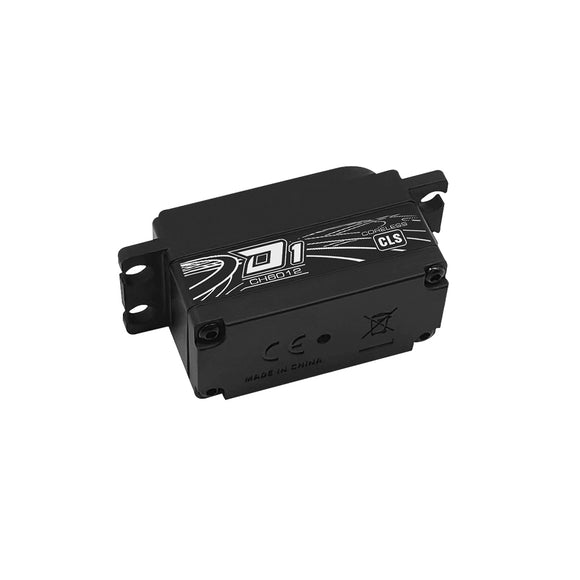

SRT CH6012 Low Profile HV Servo 9KG / 0.07 Sec @ 6.0V SRTCH6012

£47.99

1 in stock

Add £99.00 more for FREE shipping!

30 Day Returns

Changed your mind? No problem. We accept returns within 30 days of delivery.

14-Day Cancellation

Cancel your order anytime within 14 days of receiving it — no reason needed.

Support Mon–Fri 9–5

Got questions? Our team is available weekdays from 9am to 5pm.

- Ideal for 1/10 on road scale applications
- Incredible efficiency and low power consumption
- 2 μsec Dead Band
- 1-Year Limited Warranty

Application :
1/10 Electric Touring
1/10 Drift
Formula One

PRODUCT SPECIFICATIONS

Type: Digital
Bearing: Dual
Motor Type: Coreless

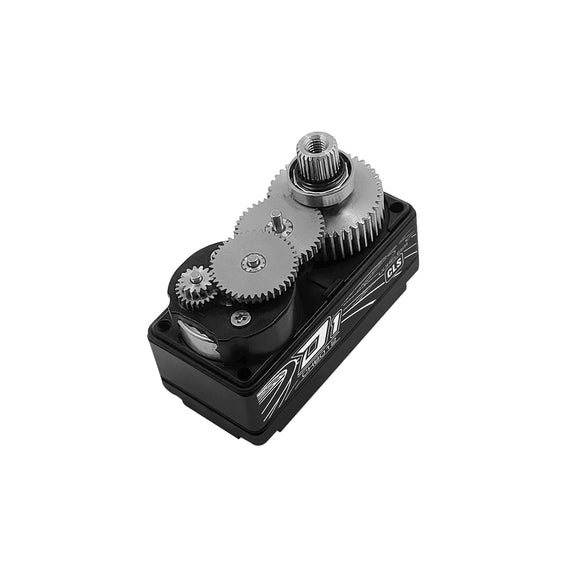

Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-7.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.07 sec/60 degrees at no load
operating speed (7.4v): 0.06 sec/60 degrees at no load
stall torque (6.0v): 9.0kg.cm (125.0 oz/in)
stall torque (7.4v): 12.0kg.cm (166.6 oz/in)
potentiometer drive: direct drive

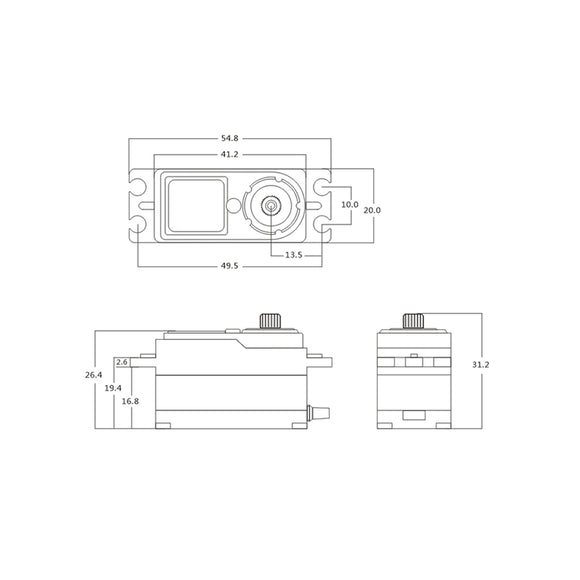

dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
weight: 48.0g (1.69 oz)
connector wire length: jr 110 mm

SRTCH6012
